Gaussian processes with outliers
Suppose there are data distributed according a noisy Gaussian process with outliers at places. Doing inference with outliers renders the inference useless, and is indeed where point-wise marginal likelihood maximisation falls flat on its face. With JAXNS we can marginalise over hyper parameters as easily as defining them as prior RVs and marginalising over the posterior.
A Gaussian process is defined by a covariance function, \(K : \mathcal{X} \times \mathcal{X} \to \mathbb{R}\), and a mean function \(\mu : \mathcal{X} \to \mathbb{R}\). Given the above data we see that it is equivalent to a Gaussian likelihood, with Gaussian process prior,
\(L(x) = p(y | x) = \mathcal{N}[y \mid x, \Sigma]\)
and
\(p(x) = \mathcal{N}[x \mid \mu(X), K(X,X)]\)
where \(\mu(X)\) and \(K(X,X)\) are the mean and covariance functions evaluated over the coordinate locations of the data.
The evidence of this model is well known,
\(Z \triangleq p(y) = \int_\mathcal{X} L(x) p(x) \,\mathrm{d} x = \mathcal{N}[y \mid \mu(X), K(X,X) + \Sigma)\)
and likewise the posterior distribution is,
\(p(x \mid y) = \mathcal{N}[x \mid \mu', K']\)
where
\(\mu' = \mu(X) + K(X,X) (K(X,X) + \Sigma)^{-1}(y - \mu(X))\)
and
\(K' = K(X,X) - K(X,X) (K(X,X) + \Sigma)^{-1} K(X,X)\)
Marginalisation
The mean and covariance functions are not a priori known and thus we must infer them as well. Let the hyper parameters of the mean and covariance functions, and the noise covariance be \(\theta\), and suppose we wish to infer their values. The likelihood then becomes,
\(p(y \mid \theta) = \int_\mathcal{X} L(x | \theta) p(x) p(\theta) \,\mathrm{d} x = \mathcal{N}[y \mid \mu_\theta(X), K_\theta(X,X) + \Sigma_\theta)\)
where we recognise this as the marginal likelihood.
Now suppose we wish to predict \(x\) at new points \(X' \subset \mathcal{X}\), then this equivalent to sampling from the marginalised predictive posterior,
Now since \(p(x(X') \mid x(X))\) and \(p(x(X) \mid y, \theta)\) are both Gaussians, their product is also a Gaussian, and is given by,
where
\(m = K(X',X)K(X,X)^{-1} \mu'\)
and
\(S = K(X',X') + K(X',X) (K(X,X)^{-1} K' K(X,X)^{-1} - K(X,X)^{-1})K(X,X')\)
Therefore, sampling from the marginalised predictive distribution is equivalent to sampling \(\theta \sim p(\theta \mid y)\), and then sampling \(x(X') \sim \mathcal{N}[x(X') \mid m, S]\).
[1]:
# for Gaussian processes this is important
from jax.config import config
config.update("jax_enable_x64", True)
import tensorflow_probability.substrates.jax as tfp
tfpd = tfp.distributions
tfpk = tfp.math.psd_kernels
from jaxns import marginalise_dynamic
from jax.scipy.linalg import solve_triangular
from jax import random
from jax import numpy as jnp
import pylab as plt
import numpy as np
INFO[2023-12-21 13:26:33,521]: Unable to initialize backend 'cuda': module 'jaxlib.xla_extension' has no attribute 'GpuAllocatorConfig'
INFO[2023-12-21 13:26:33,522]: Unable to initialize backend 'rocm': module 'jaxlib.xla_extension' has no attribute 'GpuAllocatorConfig'
INFO[2023-12-21 13:26:33,523]: Unable to initialize backend 'tpu': INTERNAL: Failed to open libtpu.so: libtpu.so: cannot open shared object file: No such file or directory
WARNING[2023-12-21 13:26:33,523]: An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.
[2]:
N = 50
num_outliers = int(0.15 * N)
np.random.seed(42)
X = jnp.linspace(-2., 2., N)[:, None]
true_sigma, true_l, true_uncert = 1., 0.2, 0.2
data_mu = jnp.zeros((N,))
prior_cov = tfpk.ExponentiatedQuadratic(amplitude=true_sigma, length_scale=true_l).matrix(X, X) + 1e-13 * jnp.eye(N)
Y = jnp.linalg.cholesky(prior_cov) @ random.normal(random.PRNGKey(42), shape=(N,)) + data_mu
Y_obs = Y + true_uncert * random.normal(random.PRNGKey(1), shape=(N,))
outliers_mask = jnp.where(jnp.isin(jnp.arange(N), np.random.choice(N, num_outliers, replace=False)), jnp.asarray(True),
jnp.asarray(False))
Y_obs = jnp.where(outliers_mask,
random.laplace(random.PRNGKey(1), shape=(N,)),
Y_obs)
plt.plot(X[:, 0], Y, c='red', label='underlying')
plt.scatter(X[:, 0], Y_obs, c='cyan', label='data')
plt.scatter(X[outliers_mask, 0], Y_obs[outliers_mask], label='outliers', facecolors='none', edgecolors='purple', lw=2)
plt.legend()
plt.show()
[3]:
import jax
from typing import Type
from jaxns import Prior, Model, DefaultNestedSampler
def run_for_kernel(kernel: Type[tfpk.PositiveSemidefiniteKernel]):
print(("Working on Kernel: {}".format(kernel.__class__.__name__)))
def log_normal(x, mean, cov):
L = jnp.linalg.cholesky(cov)
# U, S, Vh = jnp.linalg.svd(cov)
log_det = jnp.sum(jnp.log(jnp.diag(L))) # jnp.sum(jnp.log(S))#
dx = x - mean
dx = solve_triangular(L, dx, lower=True)
# U S Vh V 1/S Uh
# pinv = (Vh.T.conj() * jnp.where(S!=0., jnp.reciprocal(S), 0.)) @ U.T.conj()
maha = dx @ dx # dx @ pinv @ dx#solve_triangular(L, dx, lower=True)
log_likelihood = -0.5 * x.size * jnp.log(2. * jnp.pi) - log_det - 0.5 * maha
return log_likelihood
def log_likelihood(uncert, l, sigma):
"""
P(Y|sigma, half_width) = N[Y, f, K]
Args:
sigma:
l:
Returns:
"""
K = kernel(amplitude=sigma, length_scale=l).matrix(X, X)
data_cov = jnp.square(uncert) * jnp.eye(X.shape[0])
mu = jnp.zeros_like(Y_obs)
return log_normal(Y_obs, mu, K + data_cov)
def predict_f(uncert, l, sigma):
K = kernel(amplitude=sigma, length_scale=l).matrix(X, X)
data_cov = jnp.square(uncert) * jnp.eye(X.shape[0])
mu = jnp.zeros_like(Y_obs)
return mu + K @ jnp.linalg.solve(K + data_cov, Y_obs)
def predict_fvar(uncert, l, sigma):
K = kernel(amplitude=sigma, length_scale=l).matrix(X, X)
data_cov = jnp.square(uncert) * jnp.eye(X.shape[0])
mu = jnp.zeros_like(Y_obs)
return jnp.diag(K - K @ jnp.linalg.solve(K + data_cov, K))
# Build the model
def prior_model():
l = yield Prior(tfpd.Uniform(0., 2.), name='l')
uncert = yield Prior(tfpd.HalfNormal(1.), name='uncert')
sigma = yield Prior(tfpd.Uniform(0., 2.), name='sigma')
return uncert, l, sigma
model = Model(prior_model=prior_model, log_likelihood=log_likelihood)
model.sanity_check(random.PRNGKey(0), S=100)
# Create the nested sampler class. In this case without any tuning.
exact_ns = DefaultNestedSampler(model=model, max_samples=1e6, parameter_estimation=True)
termination_reason, state = jax.jit(exact_ns)(random.PRNGKey(42))
results = exact_ns.to_results(termination_reason=termination_reason, state=state)
exact_ns.summary(results)

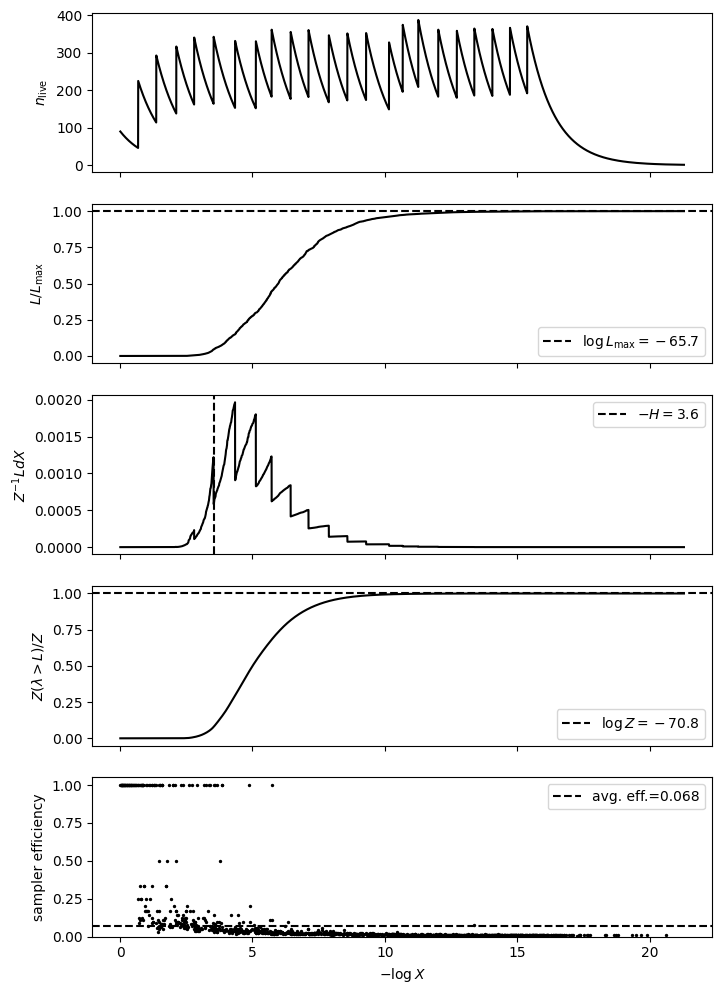

exact_ns.plot_diagnostics(results)

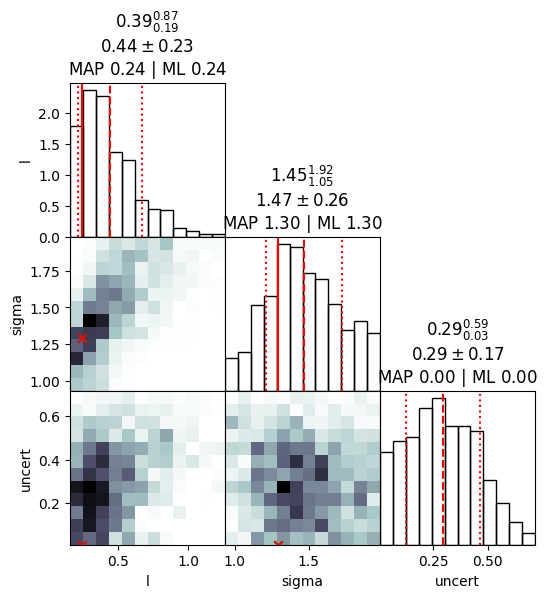

exact_ns.plot_cornerplot(results)
predict_f = marginalise_dynamic(random.PRNGKey(42), results.samples, results.log_dp_mean,
results.ESS, predict_f)
predict_fvar = marginalise_dynamic(random.PRNGKey(42), results.samples, results.log_dp_mean,
results.ESS, predict_fvar)

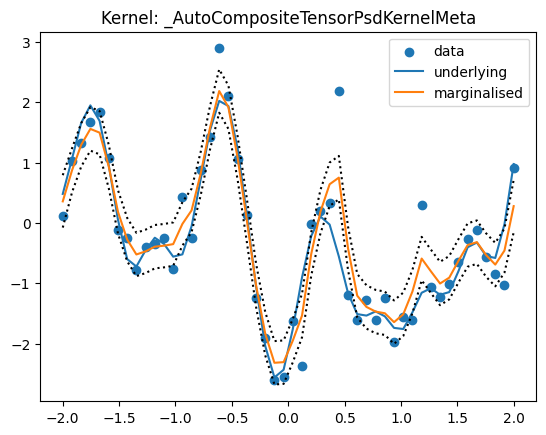

plt.scatter(X[:, 0], Y_obs, label='data')
plt.plot(X[:, 0], Y, label='underlying')
plt.plot(X[:, 0], predict_f, label='marginalised')
plt.plot(X[:, 0], predict_f + jnp.sqrt(predict_fvar), ls='dotted',
c='black')
plt.plot(X[:, 0], predict_f - jnp.sqrt(predict_fvar), ls='dotted',
c='black')
plt.title("Kernel: {}".format(kernel.__class__.__name__))
plt.legend()
plt.show()
return results.log_Z_mean, results.log_Z_uncert
[4]:
# Let us compare these models.
logZ_rbf, logZerr_rbf = run_for_kernel(tfpk.ExponentiatedQuadratic)
logZ_m12, logZerr_m12 = run_for_kernel(tfpk.MaternOneHalf)
logZ_m32, logZerr_m32 = run_for_kernel(tfpk.MaternThreeHalves)
plt.errorbar(['rbf', 'm12', 'm32'], [logZ_rbf, logZ_m12, logZ_m32], [logZerr_rbf, logZerr_m12, logZerr_m32])
plt.ylabel("log Z")
plt.legend()
plt.show()
Working on Kernel: _AutoCompositeTensorPsdKernelMeta
INFO[2023-12-21 13:26:35,519]: Sanity check...
INFO[2023-12-21 13:26:35,972]: Sanity check passed
--------
Termination Conditions:
Small remaining evidence
--------
likelihood evals: 71948
samples: 4410
phantom samples: 2970
likelihood evals / sample: 16.3
phantom fraction (%): 67.3%
--------
logZ=-71.33 +- 0.39
H=-5.08
ESS=220
--------
l: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
l: 0.209 +- 0.043 | 0.159 / 0.208 / 0.265 | 0.185 | 0.185
--------
sigma: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
sigma: 1.29 +- 0.24 | 1.0 / 1.28 / 1.6 | 1.19 | 1.19
--------
uncert: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
uncert: 0.599 +- 0.087 | 0.5 / 0.583 / 0.73 | 0.569 | 0.573
--------
Working on Kernel: _AutoCompositeTensorPsdKernelMeta
INFO[2023-12-21 13:26:57,440]: Sanity check...
INFO[2023-12-21 13:26:57,444]: Sanity check passed
--------
Termination Conditions:
Small remaining evidence
--------
likelihood evals: 52950
samples: 3960
phantom samples: 2700
likelihood evals / sample: 13.4
phantom fraction (%): 68.2%
--------
logZ=-70.82 +- 0.31
H=-2.8
ESS=147
--------
l: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
l: 0.46 +- 0.26 | 0.21 / 0.42 / 0.79 | 0.24 | 0.24
--------
sigma: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
sigma: 1.46 +- 0.26 | 1.16 / 1.41 / 1.84 | 1.3 | 1.3
--------
uncert: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
uncert: 0.3 +- 0.16 | 0.07 / 0.3 / 0.52 | 0.0 | 0.01
--------
Working on Kernel: _AutoCompositeTensorPsdKernelMeta
INFO[2023-12-21 13:27:14,983]: Sanity check...
INFO[2023-12-21 13:27:14,986]: Sanity check passed
--------
Termination Conditions:
Small remaining evidence
--------
likelihood evals: 64485
samples: 4050
phantom samples: 2700
likelihood evals / sample: 15.9
phantom fraction (%): 66.7%
--------
logZ=-71.14 +- 0.36
H=-3.98
ESS=176
--------
l: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
l: 0.29 +- 0.088 | 0.19 / 0.279 / 0.413 | 0.236 | 0.238
--------
sigma: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
sigma: 1.36 +- 0.24 | 1.03 / 1.35 / 1.66 | 1.23 | 1.22
--------
uncert: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
uncert: 0.55 +- 0.1 | 0.43 / 0.56 / 0.69 | 0.53 | 0.53
--------
WARNING[2023-12-21 13:27:37,810]: No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
[ ]:
[ ]:
