Using JAXNS to globally optimise Neural Networks

Neural network training is typically done with maximum likelihood estimation. Given the number of parameter invariances in neural network architectures, this often introduces a large number of local minima, making global optimisation very difficult.

JAXNS can easily navigate complex degeneracies during it’s calculation of the Bayesian evidence. This yields a powerful tool for globally optimising neural networks.

What we’ll do in this notebook

  1. Define a neural network model

  2. Find its maximum likelihood parameters using JAXNS

Data

We’ll use the N-bit majority problem as our data. This is a binary classification problem where the input is a sequence of bits and the output is 1 if the majority of the bits are 1, and 0 otherwise. It is known that the \(n\) bit problem requires at least \(n\) hidden units to solve. We will show that the global optimum is found by JAXNS with \(n\) hidden units, and not with \(n-1\).

[1]:

import os

os.environ["XLA_FLAGS"] = f"--xla_force_host_platform_device_count={os.cpu_count()}"

try:
    import haiku as hk
except ImportError:
    print("You must `pip install dm-haiku` first.")
    raise

import jax
import tensorflow_probability.substrates.jax as tfp
from jax import random, numpy as jnp
import numpy as np

import itertools

np.random.seed(42)

tfpd = tfp.distributions

[2]:



# Generate data


def generate_parity_dataset(N):
    """
    Generates a dataset for the N-bit parity problem.

    Args:
        N (int): Number of bits in each sample.

    Returns:
        X (np.ndarray): Input features of shape (num_samples, N).
        y (np.ndarray): Labels of shape (num_samples,).
    """
    # Generate random binary inputs
    X = np.asarray(list(itertools.product([0, 1], repeat=N)))
    # Compute parity (even or odd number of ones)
    y = np.mod(np.sum(X, axis=1), 2)
    return X.astype(np.float32), y.astype(np.float32)


num_variables = 5
x, y = generate_parity_dataset(num_variables)
print("Data:")

for input, output in zip(x, y):
    print(f"{input} -> {output}")

Data:
[0. 0. 0. 0. 0.] -> 0.0
[0. 0. 0. 0. 1.] -> 1.0
[0. 0. 0. 1. 0.] -> 1.0
[0. 0. 0. 1. 1.] -> 0.0
[0. 0. 1. 0. 0.] -> 1.0
[0. 0. 1. 0. 1.] -> 0.0
[0. 0. 1. 1. 0.] -> 0.0
[0. 0. 1. 1. 1.] -> 1.0
[0. 1. 0. 0. 0.] -> 1.0
[0. 1. 0. 0. 1.] -> 0.0
[0. 1. 0. 1. 0.] -> 0.0
[0. 1. 0. 1. 1.] -> 1.0
[0. 1. 1. 0. 0.] -> 0.0
[0. 1. 1. 0. 1.] -> 1.0
[0. 1. 1. 1. 0.] -> 1.0
[0. 1. 1. 1. 1.] -> 0.0
[1. 0. 0. 0. 0.] -> 1.0
[1. 0. 0. 0. 1.] -> 0.0
[1. 0. 0. 1. 0.] -> 0.0
[1. 0. 0. 1. 1.] -> 1.0
[1. 0. 1. 0. 0.] -> 0.0
[1. 0. 1. 0. 1.] -> 1.0
[1. 0. 1. 1. 0.] -> 1.0
[1. 0. 1. 1. 1.] -> 0.0
[1. 1. 0. 0. 0.] -> 0.0
[1. 1. 0. 0. 1.] -> 1.0
[1. 1. 0. 1. 0.] -> 1.0
[1. 1. 0. 1. 1.] -> 0.0
[1. 1. 1. 0. 0.] -> 1.0
[1. 1. 1. 0. 1.] -> 0.0
[1. 1. 1. 1. 0.] -> 0.0
[1. 1. 1. 1. 1.] -> 1.0

[3]:

from jaxns.internals.maps import pytree_unravel
from jaxns import Prior, Model
import jaxns.framework.context as ctx
from jaxns import NestedSampler, TerminationCondition

def run(n_hidden_units):
    def prior_model():
        def compute_logits(x):
            mlp = hk.Sequential([
                hk.Linear(n_hidden_units),
                jax.nn.relu,
                hk.Linear(1)
            ])
            return mlp(x)

        init, apply = hk.transform(compute_logits)
        init_params = init(random.PRNGKey(0), x)
        # Convert haiku to jaxns params
        ctx_params = ctx.convert_external_params(init_params, prefix='haiku_model')
        # Flatten, model, then unflatten to use
        ravel_fn, unravel_fn = pytree_unravel(ctx_params)
        ndims = ravel_fn(init_params).size
        flat_params = yield Prior(tfpd.Uniform(-10. * jnp.ones(ndims), 10. * jnp.ones(ndims)), name='flat_params')
        params = unravel_fn(flat_params)
        logits = apply(params, jax.random.PRNGKey(0), x)[:, 0]  # [n]
        return logits.astype(jnp.float32)


    def log_likelihood(logits):
        # Classification probelm, so we use a Bernoulli likelihood
        return tfpd.Bernoulli(logits=logits).log_prob(y).mean()


    model = Model(prior_model=prior_model, log_likelihood=log_likelihood)

    model.sanity_check(random.PRNGKey(0), S=100)

    ns = NestedSampler(model=model)

    term_reason, state = jax.jit(ns)(
        random.PRNGKey(42),
        TerminationCondition(atol=0.01)
    )
    results = ns.to_results(term_reason, state)
    ns.summary(results)
    ns.plot_diagnostics(results)
    ns.plot_cornerplot(results)

    solution = results.U_samples[jnp.argmax(results.log_L_samples)]

    logits = model.prepare_input(solution)[0]
    predictions = jax.nn.sigmoid(logits)
    for i in range(len(y)):
        pred = predictions[i]
        print(f"{i}: {x[i]} -> {y[i]} | pred: {pred} {'✓' if (pred > 0.5) == y[i] else '✗'}")

    accuracy = jnp.mean((predictions > 0.5) == y)
    print(f"Accuracy: {accuracy * 100:.1f}%")


/home/albert/miniconda3/envs/jaxns_py/lib/python3.11/site-packages/jaxns/internals/mixed_precision.py:14: UserWarning: JAX x64 is not enabled. Setting it now. Check for errors.
  warnings.warn("JAX x64 is not enabled. Setting it now. Check for errors.")
INFO:jax._src.xla_bridge:Unable to initialize backend 'cuda':
INFO:jax._src.xla_bridge:Unable to initialize backend 'rocm': module 'jaxlib.xla_extension' has no attribute 'GpuAllocatorConfig'
INFO:jax._src.xla_bridge:Unable to initialize backend 'tpu': INTERNAL: Failed to open libtpu.so: libtpu.so: cannot open shared object file: No such file or directory
WARNING:jax._src.xla_bridge:An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.

[4]:

run(num_variables)

INFO:jaxns:Sanity check...
INFO:jaxns:Sanity check passed

Running over 12 devices.
--------
Termination Conditions:
absolute spread of live points < atol
--------
likelihood evals: 11301639
samples: 46980
phantom samples: 0
likelihood evals / sample: 240.6
phantom fraction (%): 0.0%
--------
logZ=-7.606 +- 0.078
max(logL)=-0.001
H=-4.46
ESS=2219
--------
flat_params[#]: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
flat_params[0]: -3.2 +- 5.1 | -9.0 / -4.2 / 4.7 | 7.7 | 7.7
flat_params[1]: -3.1 +- 5.1 | -9.1 / -4.0 / 5.0 | -0.6 | -0.6
flat_params[2]: -3.1 +- 5.2 | -8.9 / -4.3 / 4.9 | -6.0 | -6.0
flat_params[3]: -3.3 +- 5.0 | -8.9 / -4.5 / 4.3 | -7.4 | -7.4
flat_params[4]: -2.9 +- 5.2 | -8.9 / -3.9 / 5.0 | -8.9 | -8.9
flat_params[5]: -1.9 +- 5.4 | -8.5 / -2.6 / 6.3 | 9.3 | 9.3
flat_params[6]: -1.7 +- 5.3 | -8.4 / -2.3 / 6.2 | 8.1 | 8.1
flat_params[7]: -1.7 +- 5.4 | -8.4 / -2.3 / 6.4 | -4.1 | -4.1
flat_params[8]: -1.5 +- 5.3 | -8.5 / -2.0 / 6.1 | 4.7 | 4.7
flat_params[9]: -1.3 +- 5.3 | -8.2 / -1.7 / 6.7 | -4.6 | -4.6
flat_params[10]: -1.6 +- 5.5 | -8.7 / -2.4 / 6.6 | -9.2 | -9.2
flat_params[11]: -2.0 +- 5.2 | -8.7 / -2.7 / 5.6 | -8.9 | -8.9
flat_params[12]: -1.7 +- 5.2 | -8.3 / -2.3 / 5.8 | 5.4 | 5.4
flat_params[13]: -1.8 +- 5.3 | -8.6 / -2.5 / 6.0 | -8.6 | -8.6
flat_params[14]: -1.5 +- 5.4 | -8.5 / -1.9 / 6.3 | 5.4 | 5.4
flat_params[15]: -1.4 +- 5.3 | -8.3 / -1.6 / 6.4 | -8.2 | -8.2
flat_params[16]: -1.9 +- 5.1 | -8.4 / -2.4 / 5.4 | -6.7 | -6.7
flat_params[17]: -1.5 +- 5.3 | -8.4 / -2.1 / 6.1 | 5.1 | 5.1
flat_params[18]: -1.5 +- 5.4 | -8.4 / -2.2 / 6.5 | -9.7 | -9.7
flat_params[19]: -1.5 +- 5.4 | -8.4 / -2.1 / 6.4 | 3.9 | 3.9
flat_params[20]: -1.1 +- 5.4 | -8.3 / -1.4 / 6.7 | -8.1 | -8.1
flat_params[21]: -1.5 +- 5.3 | -8.4 / -1.7 / 6.4 | -8.2 | -8.2
flat_params[22]: -1.5 +- 5.2 | -8.3 / -1.7 / 5.9 | 5.4 | 5.4
flat_params[23]: -1.9 +- 5.3 | -8.5 / -2.7 / 5.8 | -6.8 | -6.8
flat_params[24]: -1.3 +- 5.5 | -8.5 / -2.0 / 6.7 | 4.6 | 4.6
flat_params[25]: -1.7 +- 5.5 | -8.6 / -2.2 / 6.6 | 8.6 | 8.6
flat_params[26]: -1.0 +- 5.4 | -8.3 / -1.5 / 6.5 | 8.2 | 8.2
flat_params[27]: -1.4 +- 5.5 | -8.3 / -2.1 / 6.9 | -6.1 | -6.1
flat_params[28]: -1.1 +- 5.4 | -8.2 / -1.6 / 6.9 | 7.3 | 7.3
flat_params[29]: -1.7 +- 5.3 | -8.7 / -2.2 / 5.9 | -5.9 | -5.9
flat_params[30]: -0.4 +- 4.5 | -6.7 / -0.4 / 5.6 | 8.9 | 8.9
flat_params[31]: -0.1 +- 4.7 | -7.0 / -0.1 / 6.5 | -2.3 | -2.3
flat_params[32]: -0.1 +- 4.6 | -6.5 / -0.1 / 6.6 | 5.3 | 5.3
flat_params[33]: -0.1 +- 4.7 | -6.9 / -0.0 / 6.7 | -5.2 | -5.2
flat_params[34]: -0.0 +- 4.7 | -6.7 / 0.1 / 6.6 | -9.7 | -9.7
flat_params[35]: 0.2 +- 4.5 | -6.1 / 0.2 / 6.6 | 9.9 | 9.9
--------

/home/albert/miniconda3/envs/jaxns_py/lib/python3.11/site-packages/jaxns/plotting.py:45: UserWarning: Found samples with zero likelihood evaluations.
  warnings.warn("Found samples with zero likelihood evaluations.")
/home/albert/miniconda3/envs/jaxns_py/lib/python3.11/site-packages/jaxns/plotting.py:49: RuntimeWarning: divide by zero encountered in divide
  1. / num_likelihood_evaluations_per_sample

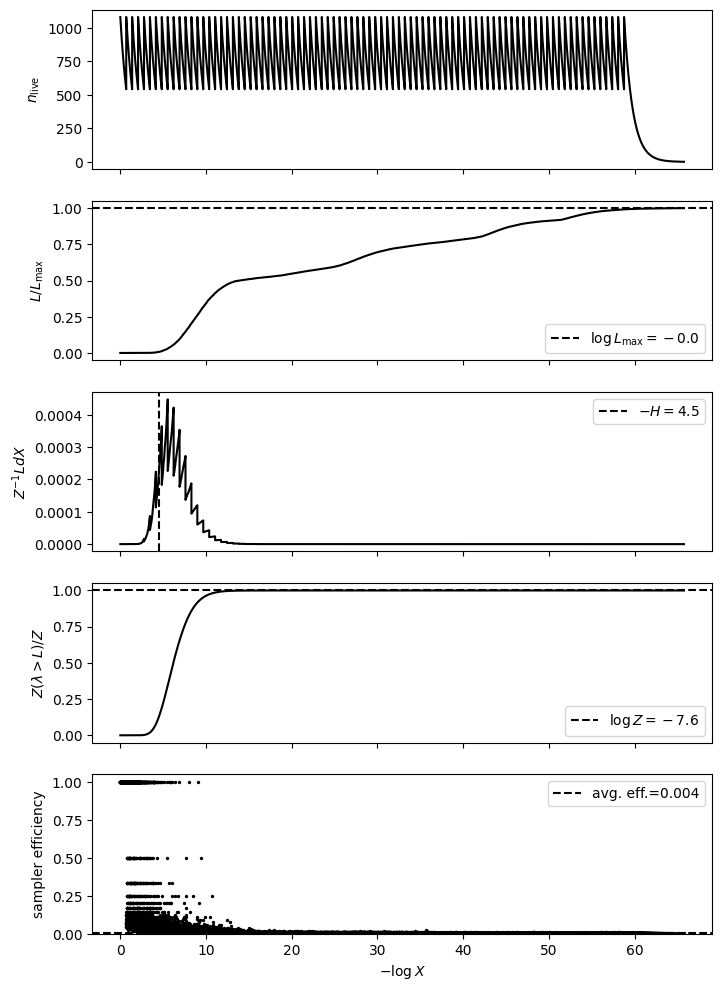

../_images/examples_global_optimisation_neural_network_4_3.png

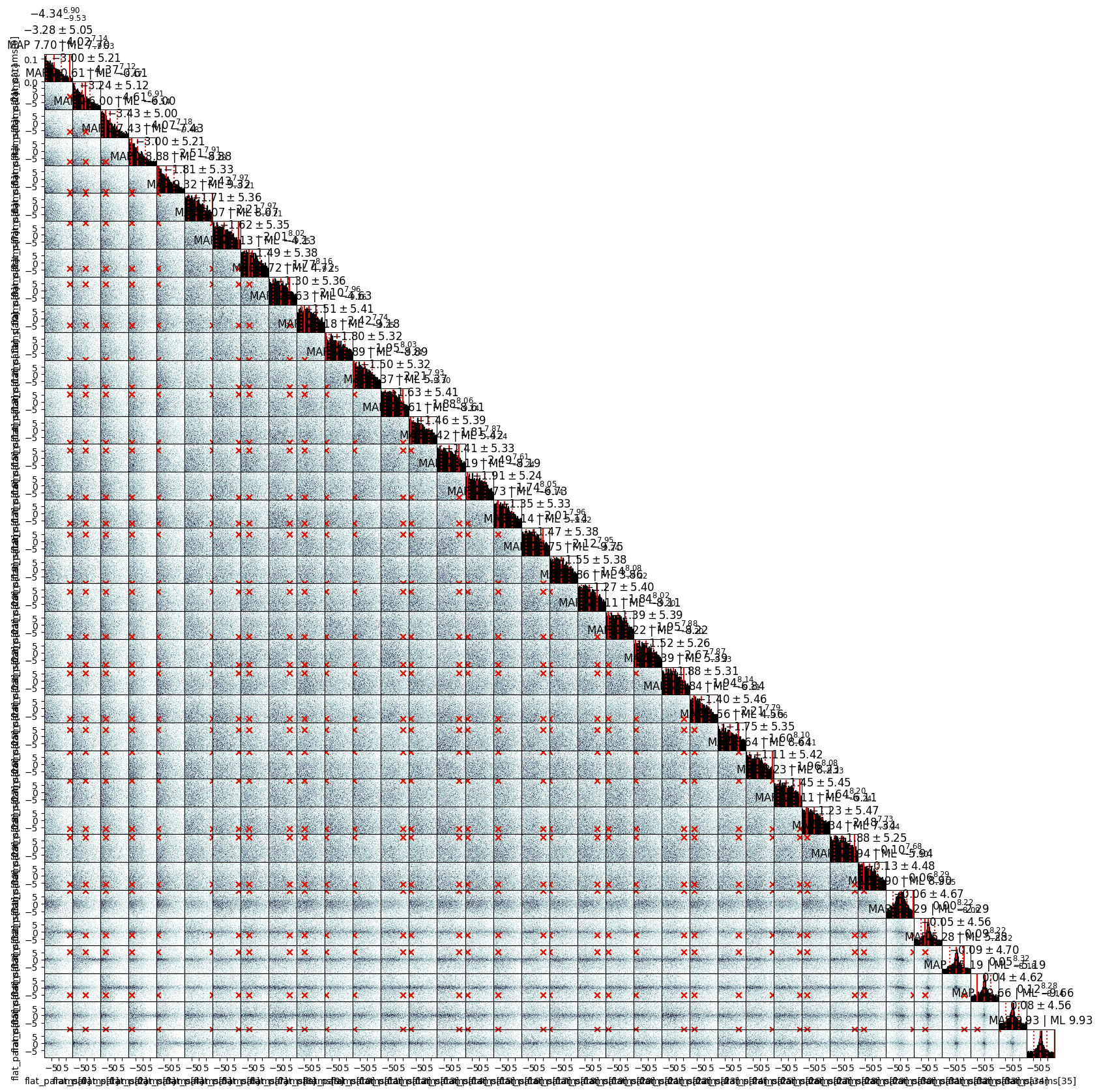

../_images/examples_global_optimisation_neural_network_4_4.png
0: [0. 0. 0. 0. 0.] -> 0.0 | pred: 0.0001603582495590672 ✓
1: [0. 0. 0. 0. 1.] -> 1.0 | pred: 0.9999916553497314 ✓
2: [0. 0. 0. 1. 0.] -> 1.0 | pred: 0.9998642206192017 ✓
3: [0. 0. 0. 1. 1.] -> 0.0 | pred: 4.826125586987473e-05 ✓
4: [0. 0. 1. 0. 0.] -> 1.0 | pred: 0.9998642206192017 ✓
5: [0. 0. 1. 0. 1.] -> 0.0 | pred: 0.006293473765254021 ✓
6: [0. 0. 1. 1. 0.] -> 0.0 | pred: 4.47046147655783e-07 ✓
7: [0. 0. 1. 1. 1.] -> 1.0 | pred: 0.9998515844345093 ✓
8: [0. 1. 0. 0. 0.] -> 1.0 | pred: 0.9998642206192017 ✓
9: [0. 1. 0. 0. 1.] -> 0.0 | pred: 0.0005624053883366287 ✓
10: [0. 1. 0. 1. 0.] -> 0.0 | pred: 0.007503319066017866 ✓
11: [0. 1. 0. 1. 1.] -> 1.0 | pred: 0.9998642206192017 ✓
12: [0. 1. 1. 0. 0.] -> 0.0 | pred: 2.489727921783924e-05 ✓
13: [0. 1. 1. 0. 1.] -> 1.0 | pred: 0.9998642206192017 ✓
14: [0. 1. 1. 1. 0.] -> 1.0 | pred: 0.9988038539886475 ✓
15: [0. 1. 1. 1. 1.] -> 0.0 | pred: 2.1107047359691933e-05 ✓
16: [1. 0. 0. 0. 0.] -> 1.0 | pred: 0.9999055862426758 ✓
17: [1. 0. 0. 0. 1.] -> 0.0 | pred: 7.628910680068657e-06 ✓
18: [1. 0. 0. 1. 0.] -> 0.0 | pred: 1.0083437700814102e-05 ✓
19: [1. 0. 0. 1. 1.] -> 1.0 | pred: 0.9997050166130066 ✓
20: [1. 0. 1. 0. 0.] -> 0.0 | pred: 0.000562924484256655 ✓
21: [1. 0. 1. 0. 1.] -> 1.0 | pred: 0.9999998807907104 ✓
22: [1. 0. 1. 1. 0.] -> 1.0 | pred: 0.9943498969078064 ✓
23: [1. 0. 1. 1. 1.] -> 0.0 | pred: 0.00018032571824733168 ✓
24: [1. 1. 0. 0. 0.] -> 0.0 | pred: 0.00011755365267163143 ✓
25: [1. 1. 0. 0. 1.] -> 1.0 | pred: 0.9991588592529297 ✓
26: [1. 1. 0. 1. 0.] -> 1.0 | pred: 0.9964148998260498 ✓
27: [1. 1. 0. 1. 1.] -> 0.0 | pred: 3.537770317052491e-05 ✓
28: [1. 1. 1. 0. 0.] -> 1.0 | pred: 0.9990290403366089 ✓
29: [1. 1. 1. 0. 1.] -> 0.0 | pred: 6.320502143353224e-05 ✓
30: [1. 1. 1. 1. 0.] -> 0.0 | pred: 1.786692038763249e-08 ✓
31: [1. 1. 1. 1. 1.] -> 1.0 | pred: 0.9997976422309875 ✓
Accuracy: 100.0%

[5]:

run(num_variables - 1)

INFO:jaxns:Sanity check...
INFO:jaxns:Sanity check passed

Running over 12 devices.
--------
Termination Conditions:
absolute spread of live points < atol
--------
likelihood evals: 6574962
samples: 33300
phantom samples: 0
likelihood evals / sample: 197.4
phantom fraction (%): 0.0%
--------
logZ=-6.456 +- 0.078
max(logL)=-0.085
H=-3.66
ESS=1724
--------
flat_params[#]: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
flat_params[0]: -3.2 +- 5.2 | -9.1 / -4.4 / 4.5 | 9.8 | 9.8
flat_params[1]: -3.4 +- 4.8 | -9.0 / -4.4 / 4.1 | -8.8 | -8.8
flat_params[2]: -3.3 +- 5.1 | -9.1 / -4.4 / 4.5 | 0.7 | 0.7
flat_params[3]: -3.1 +- 5.0 | -8.9 / -4.2 / 4.6 | 7.6 | 7.6
flat_params[4]: -1.6 +- 5.3 | -8.3 / -2.2 / 6.3 | -4.9 | -4.9
flat_params[5]: -1.9 +- 5.1 | -8.5 / -2.3 / 5.5 | -6.0 | -6.0
flat_params[6]: -1.4 +- 5.4 | -8.4 / -2.0 / 6.7 | -9.2 | -9.2
flat_params[7]: -1.9 +- 5.4 | -8.7 / -2.8 / 6.2 | -6.9 | -6.9
flat_params[8]: -1.7 +- 5.3 | -8.4 / -2.2 / 6.3 | -7.7 | -7.7
flat_params[9]: -1.7 +- 5.1 | -8.2 / -2.0 / 5.6 | -8.0 | -8.0
flat_params[10]: -1.5 +- 5.5 | -8.6 / -2.2 / 6.9 | -9.1 | -9.1
flat_params[11]: -1.3 +- 5.4 | -8.3 / -1.6 / 6.6 | -9.0 | -9.0
flat_params[12]: -1.7 +- 5.3 | -8.5 / -2.4 / 6.1 | 4.1 | 4.1
flat_params[13]: -1.5 +- 5.4 | -8.4 / -2.2 / 6.5 | 6.9 | 6.9
flat_params[14]: -1.7 +- 5.4 | -8.5 / -2.4 / 6.3 | 9.4 | 9.4
flat_params[15]: -1.8 +- 5.3 | -8.5 / -2.4 / 6.0 | 7.0 | 7.0
flat_params[16]: -1.5 +- 5.2 | -8.3 / -2.2 / 6.1 | -5.0 | -5.0
flat_params[17]: -1.8 +- 5.3 | -8.6 / -2.4 / 5.9 | -6.5 | -6.5
flat_params[18]: -1.8 +- 5.4 | -8.5 / -2.5 / 6.4 | -8.7 | -8.7
flat_params[19]: -2.2 +- 5.2 | -8.5 / -2.9 / 5.3 | -6.3 | -6.3
flat_params[20]: -1.3 +- 5.5 | -8.4 / -1.7 / 6.8 | 7.4 | 7.4
flat_params[21]: -1.7 +- 5.1 | -8.4 / -2.2 / 5.7 | 8.2 | 8.2
flat_params[22]: -1.1 +- 5.4 | -8.2 / -1.2 / 6.7 | 8.5 | 8.5
flat_params[23]: -1.3 +- 5.5 | -8.3 / -1.9 / 6.6 | 9.2 | 9.2
flat_params[24]: -0.0 +- 4.2 | -5.6 / -0.1 / 5.6 | -1.5 | -1.5
flat_params[25]: -0.0 +- 4.8 | -7.1 / 0.0 / 6.9 | 6.2 | 6.2
flat_params[26]: -0.0 +- 4.8 | -7.0 / 0.0 / 6.8 | -9.7 | -9.7
flat_params[27]: -0.2 +- 4.6 | -7.0 / -0.1 / 6.1 | 7.4 | 7.4
flat_params[28]: 0.2 +- 4.7 | -6.4 / 0.2 / 6.6 | -9.4 | -9.4
--------

/home/albert/miniconda3/envs/jaxns_py/lib/python3.11/site-packages/jaxns/plotting.py:45: UserWarning: Found samples with zero likelihood evaluations.
  warnings.warn("Found samples with zero likelihood evaluations.")
/home/albert/miniconda3/envs/jaxns_py/lib/python3.11/site-packages/jaxns/plotting.py:49: RuntimeWarning: divide by zero encountered in divide
  1. / num_likelihood_evaluations_per_sample
../_images/examples_global_optimisation_neural_network_5_3.png

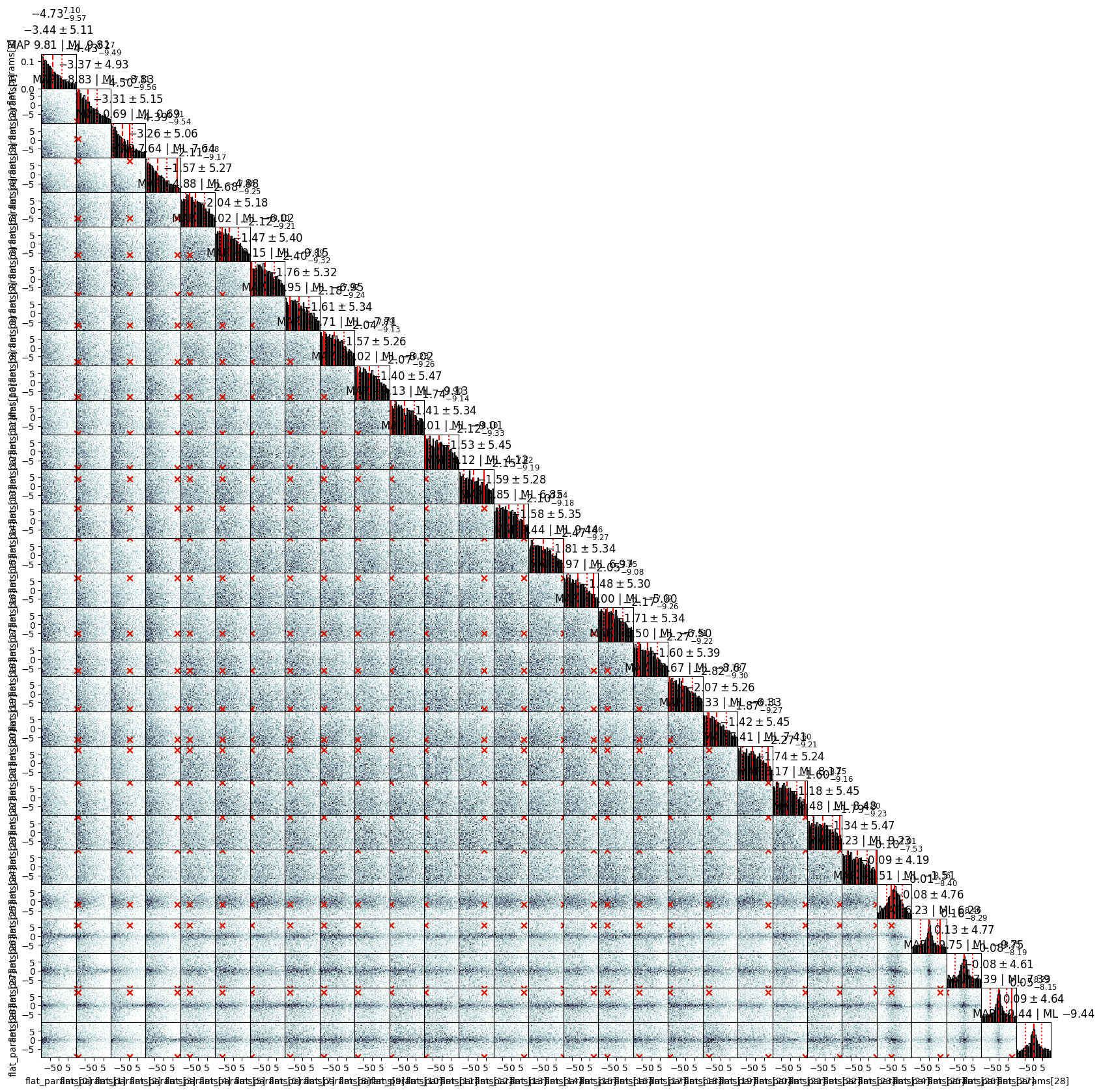

../_images/examples_global_optimisation_neural_network_5_4.png
0: [0. 0. 0. 0. 0.] -> 0.0 | pred: 0.0005937305395491421 ✓
1: [0. 0. 0. 0. 1.] -> 1.0 | pred: 0.9999994039535522 ✓
2: [0. 0. 0. 1. 0.] -> 1.0 | pred: 0.9999998807907104 ✓
3: [0. 0. 0. 1. 1.] -> 0.0 | pred: 6.42026598551837e-10 ✓
4: [0. 0. 1. 0. 0.] -> 1.0 | pred: 1.0 ✓
5: [0. 0. 1. 0. 1.] -> 0.0 | pred: 6.972756239065347e-08 ✓
6: [0. 0. 1. 1. 0.] -> 0.0 | pred: 1.7175752873299643e-06 ✓
7: [0. 0. 1. 1. 1.] -> 1.0 | pred: 0.9997764229774475 ✓
8: [0. 1. 0. 0. 0.] -> 1.0 | pred: 0.9999908208847046 ✓
9: [0. 1. 0. 0. 1.] -> 0.0 | pred: 1.0467486077914145e-07 ✓
10: [0. 1. 0. 1. 0.] -> 0.0 | pred: 0.18118071556091309 ✓
11: [0. 1. 0. 1. 1.] -> 1.0 | pred: 0.999995231628418 ✓
12: [0. 1. 1. 0. 0.] -> 0.0 | pred: 0.00027995381969958544 ✓
13: [0. 1. 1. 0. 1.] -> 1.0 | pred: 0.9999985694885254 ✓
14: [0. 1. 1. 1. 0.] -> 1.0 | pred: 0.9977697134017944 ✓
15: [0. 1. 1. 1. 1.] -> 0.0 | pred: 3.0262933825575544e-10 ✓
16: [1. 0. 0. 0. 0.] -> 1.0 | pred: 1.0 ✓
17: [1. 0. 0. 0. 1.] -> 0.0 | pred: 1.2974471275128963e-08 ✓
18: [1. 0. 0. 1. 0.] -> 0.0 | pred: 0.18118071556091309 ✓
19: [1. 0. 0. 1. 1.] -> 1.0 | pred: 0.9999678134918213 ✓
20: [1. 0. 1. 0. 0.] -> 0.0 | pred: 3.4708678867900744e-05 ✓
21: [1. 0. 1. 0. 1.] -> 1.0 | pred: 0.9999445676803589 ✓
22: [1. 0. 1. 1. 0.] -> 1.0 | pred: 0.9999856948852539 ✓
23: [1. 0. 1. 1. 1.] -> 0.0 | pred: 3.751090063564e-11 ✓
24: [1. 1. 0. 0. 0.] -> 0.0 | pred: 0.18118071556091309 ✓
25: [1. 1. 0. 0. 1.] -> 1.0 | pred: 1.0 ✓
26: [1. 1. 0. 1. 0.] -> 1.0 | pred: 0.18118071556091309 ✗
27: [1. 1. 0. 1. 1.] -> 0.0 | pred: 0.18118071556091309 ✓
28: [1. 1. 1. 0. 0.] -> 1.0 | pred: 0.9989967942237854 ✓
29: [1. 1. 1. 0. 1.] -> 0.0 | pred: 6.115756789881743e-09 ✓
30: [1. 1. 1. 1. 0.] -> 0.0 | pred: 0.18118071556091309 ✓
31: [1. 1. 1. 1. 1.] -> 1.0 | pred: 0.9993218183517456 ✓
Accuracy: 96.9%
