Efficient parameter estimation

This uses a problem from radio interferometry of inferring ionospheric parameters from phase data. We’ll explore how to use JAXNS when the focus is on efficient parameter estimation rather than evidence calculation.

import pylab as plt
import tensorflow_probability.substrates.jax as tfp
from jax import random, numpy as jnp

from jaxns import NestedSampler
from jaxns import bruteforce_evidence

tfpd = tfp.distributions

/home/albert/git/jaxns/src/jaxns/internals/mixed_precision.py:14: UserWarning: JAX x64 is not enabled. Setting it now. Check for errors.
  warnings.warn("JAX x64 is not enabled. Setting it now. Check for errors.")
INFO:jax._src.xla_bridge:Unable to initialize backend 'cuda':
INFO:jax._src.xla_bridge:Unable to initialize backend 'rocm': module 'jaxlib.xla_extension' has no attribute 'GpuAllocatorConfig'
INFO:jax._src.xla_bridge:Unable to initialize backend 'tpu': INTERNAL: Failed to open libtpu.so: libtpu.so: cannot open shared object file: No such file or directory
WARNING:jax._src.xla_bridge:An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.

TEC_CONV = -8.4479745  #rad*MHz/mTECU
CLOCK_CONV = (2e-3 * jnp.pi)  #rad/MHz/ns


def wrap(phi):
    return (phi + jnp.pi) % (2 * jnp.pi) - jnp.pi


def generate_data(key, uncert):
    """
    Generate gain data where the phase have a clock const and tec component. This is a model of the impact of the ionosphere on the propagation of radio waves, part of radio interferometry:

    phase[:] = tec * (tec_conv / freqs[:]) + clock * (clock_conv * freqs[:]) + const

    then the gains are:

        gains[:] ~ Normal[{cos(phase[:]), sin(phase[:])}, uncert^2 * I]

    phase_obs[:] = ArcTan[gains.imag, gains.real]

    Args:
        key:
        uncert: uncertainty of the gains

    Returns:
        phase_obs, freqs
    """
    freqs = jnp.linspace(121, 166, 24)  #MHz
    tec = 90.  #mTECU
    const = 2.  #rad
    clock = 0.5  #ns
    phase = wrap(tec * (TEC_CONV / freqs) + clock * (CLOCK_CONV * freqs) + const)
    Y = jnp.concatenate([jnp.cos(phase), jnp.sin(phase)], axis=-1)
    Y_obs = Y + uncert * random.normal(key, shape=Y.shape)
    phase_obs = jnp.arctan2(Y_obs[..., freqs.size:], Y_obs[..., :freqs.size])
    return phase, phase_obs, freqs

# Generate data
key = random.PRNGKey(43)
key, data_key = random.split(key)
phase_underlying, phase_obs, freqs = generate_data(data_key, 0.25)

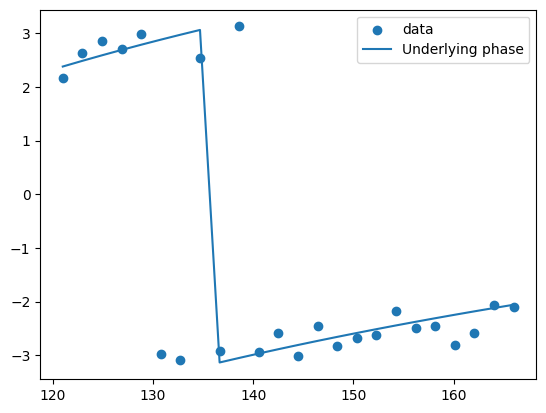

plt.scatter(freqs, phase_obs, label='data')
plt.plot(freqs, phase_underlying, label='Underlying phase')
plt.legend()
plt.show()
# Note: the phase wrapping makes this a difficult problem to solve. As we'll see, the posterior is rather complicated.

from jaxns import Prior, Model


def log_normal(x, mean, scale):
    return tfpd.Normal(loc=mean, scale=scale).log_prob(x)


def log_likelihood(dtec, const, clock, uncert):
    phase = dtec * (TEC_CONV / freqs) + const + clock * (CLOCK_CONV * freqs)
    logL = log_normal(wrap(wrap(phase) - wrap(phase_obs)), 0., uncert)
    return jnp.sum(logL)


def prior_model():
    tec = yield Prior(tfpd.Uniform(-300, 300.), name='dtec')
    const = yield Prior(tfpd.Uniform(-jnp.pi, jnp.pi), name='const')
    clock = yield Prior(tfpd.Uniform(-2., 2.), name='clock')
    uncert = yield Prior(tfpd.HalfNormal(0.25), name='uncert')

    return tec, const, clock, uncert


model = Model(prior_model=prior_model, log_likelihood=log_likelihood)

model.sanity_check(random.PRNGKey(0), S=100)

log_Z_true = bruteforce_evidence(model=model, S=80)
print(f"Approx. log(Z)={log_Z_true}")  # Unsure if this grid is sufficient to get a good estimate of the evidence.

INFO:jaxns:Sanity check...
INFO:jaxns:Sanity check passed

Approx. log(Z)=-8.74251800745667

First the normal nested sampler (parameter_estimation=False)

import jax

# Create the nested sampler class. In this case without any tuning.
ns = NestedSampler(model=model, parameter_estimation=False)
termination_reason, state = jax.jit(ns)(random.PRNGKey(432345987))
results = ns.to_results(termination_reason=termination_reason, state=state)
ns.summary(results)

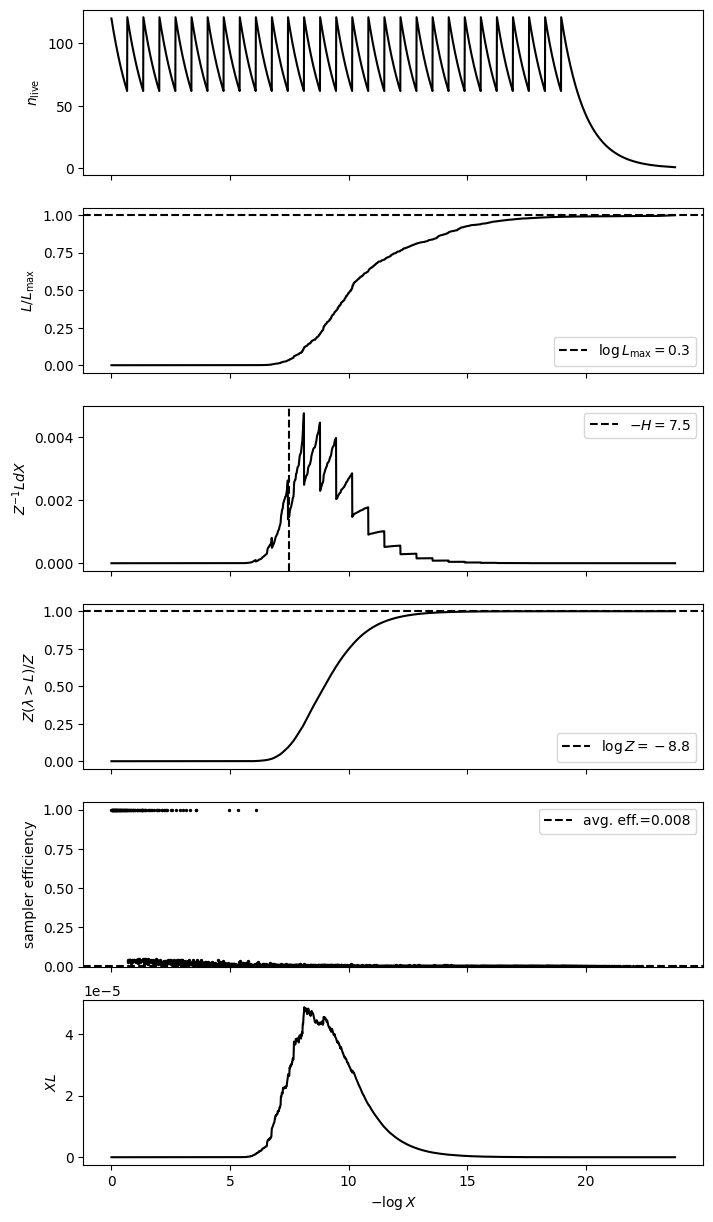

ns.plot_diagnostics(results)

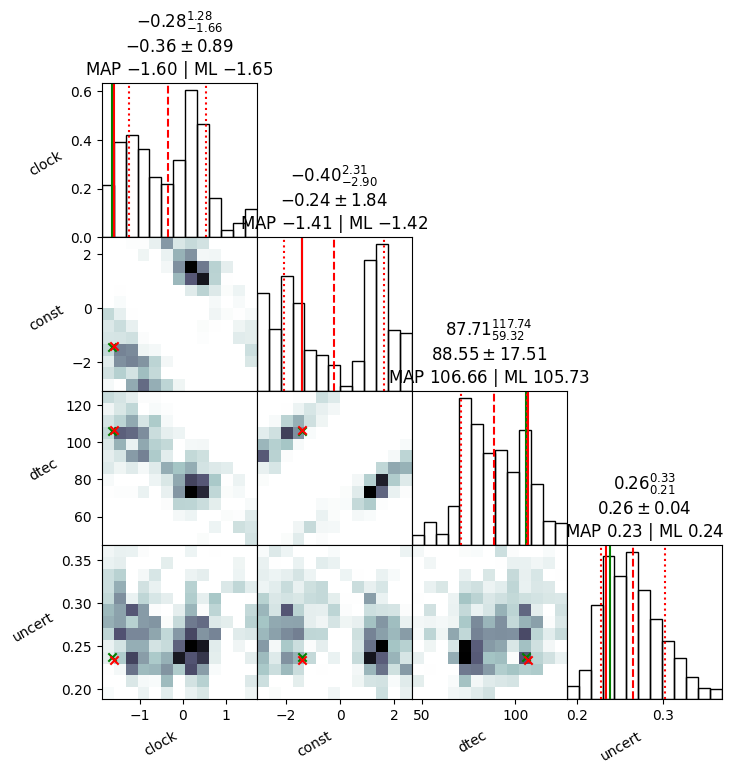

ns.plot_cornerplot(results)

--------
Termination Conditions:
Small remaining evidence
--------
likelihood evals: 233772
samples: 1800
phantom samples: 0
likelihood evals / sample: 129.9
phantom fraction (%): 0.0%
--------
logZ=-8.81 +- 0.3
max(logL)=0.32
H=-7.48
ESS=188
--------
clock: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
clock: -0.41 +- 0.88 | -1.5 / -0.4 / 0.63 | -1.6 | -1.65
--------
const: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
const: -0.2 +- 1.9 | -2.7 / -0.4 / 2.2 | -1.4 | -1.4
--------
dtec: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
dtec: 90.0 +- 17.0 | 71.0 / 90.0 / 110.0 | 107.0 | 106.0
--------
uncert: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
uncert: 0.266 +- 0.036 | 0.228 / 0.261 / 0.315 | 0.234 | 0.238
--------

Now with parameter estimation enabled

Notice fewer likelihood evaluations are needed.

# Create the nested sampler class. In this case without any tuning.
ns = NestedSampler(model=model, parameter_estimation=True)
termination_reason, state = jax.jit(ns)(random.PRNGKey(432345987))
results = ns.to_results(termination_reason=termination_reason, state=state)
ns.summary(results)
ns.plot_diagnostics(results)
ns.plot_cornerplot(results)

--------
Termination Conditions:
XL < max(XL) * peak_XL_frac
--------
likelihood evals: 146580
samples: 6420
phantom samples: 5040
likelihood evals / sample: 22.8
phantom fraction (%): 78.5%
--------
logZ=-8.85 +- 0.34
max(logL)=0.31
H=-7.43
ESS=208
--------
clock: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
clock: -0.32 +- 0.91 | -1.48 / -0.25 / 0.68 | -1.6 | -1.56
--------
const: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
const: -0.3 +- 1.9 | -2.7 / -0.6 / 2.1 | -1.4 | -1.5
--------
dtec: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
dtec: 88.0 +- 17.0 | 70.0 / 87.0 / 112.0 | 107.0 | 105.0
--------
uncert: mean +- std.dev. | 10%ile / 50%ile / 90%ile | MAP est. | max(L) est.
uncert: 0.264 +- 0.037 | 0.222 / 0.259 / 0.315 | 0.234 | 0.237
--------

/home/albert/git/jaxns/src/jaxns/plotting.py:45: UserWarning: Found samples with zero likelihood evaluations.
  warnings.warn("Found samples with zero likelihood evaluations.")
